Collecting Broom 1100

Collecting Broom 1100

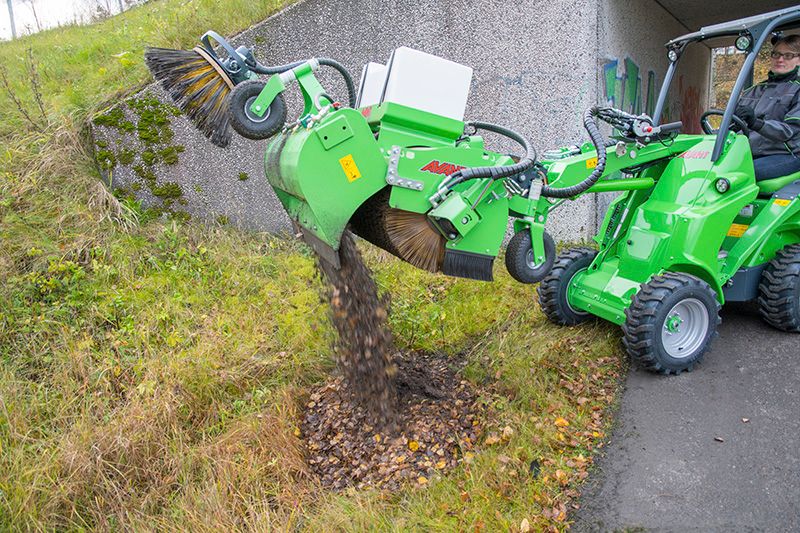

The collecting broom 1100 is mainly intended for Avant 200, 400 and 500 series. Broom diameter is 500 mm, it consists of 32 pcs brush segments which can be changed one by one. The broom is equipped with three support wheels and with Optifloat™ quick attach system which allows both vertical and sideways floating of the broom and guarantees efficient sweeping also on uneven surfaces. Two indicator arrows on the Optifloat™ quick attach bracket make adjustment of the floating very easy. Broom height can be adjusted manually, to compensate wear of the nylon bristles.

Collector box with 80 l volume is mounted in front of the broom. Emptying of the box is hydraulic. Water spraying system for dust binding and one side brush are available as an option.

  • Intended mainly for 200, 400 and 500 series
  • Equipped with Optifloat™ > works well on uneven surfaces as well
  • Broom height can be adjusted manually
  • Collector box with hydraulic emptying in front of the broom, box volume 80 l

Collecting Broom 1100

The collecting broom 1100 is mainly intended for Avant 200, 400 and 500 series. Broom diameter is 500 mm.

Category:

Description

The collecting broom 1100 is mainly intended for Avant 200, 400 and 500 series. Broom diameter is 500 mm, it consists of 32 pcs brush segments which can be changed one by one. The broom is equipped with three support wheels and with Optifloat™ quick attach system which allows both vertical and sideways floating of the broom and guarantees efficient sweeping also on uneven surfaces. Two indicator arrows on the Optifloat™ quick attach bracket make adjustment of the floating very easy. Broom height can be adjusted manually, to compensate wear of the nylon bristles.

Collector box with 80 l volume is mounted in front of the broom. Emptying of the box is hydraulic. Water spraying system for dust binding and one side brush are available as an option.

  • Intended mainly for 200, 400 and 500 series
  • Equipped with Optifloat™ > works well on uneven surfaces as well
  • Broom height can be adjusted manually
  • Collector box with hydraulic emptying in front of the broom, box volume 80 l

Reviews

There are no reviews yet.

Be the first to review “Collecting Broom 1100”

Your email address will not be published. Required fields are marked *

* without water spraying system
Broom width1100 mm
Total width1350 mm
Broom diameter 500 mm
Collector box volume80 l
Water tank volume 60 l
Weight without side brush315 kg*
Weight with 1 side brush340 kg*
PRODUCT NOSIDE BRUSH WATER SPRAYING SYSTEM
A36883 no no
A4262291 brush no
A426231 1 brush yes
*(Water spraying system and side brush not available for 200 series)
Water spraying system, with 60 l water tank A37431
Side brush A35698
