S30 Multi-function Drive Unit new

S30 Multi-function Drive Unit new

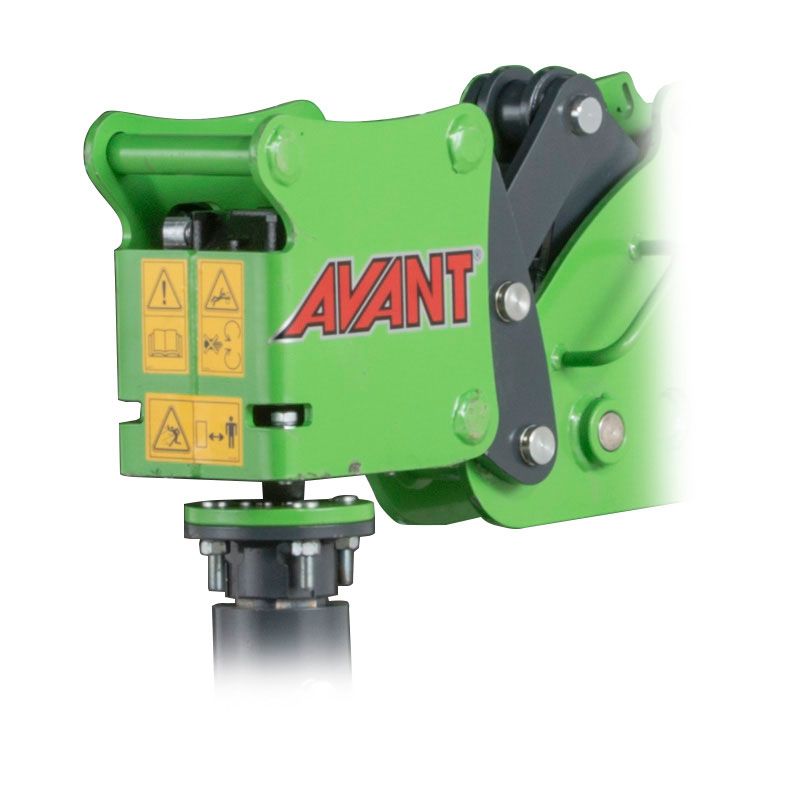

The multi-function drive unit equipped with the S30 quick attach bracket is intended mainly for rotating different types of brushes – XL weed brush, XL wire rope brush, and carousel broom. It can be mounted in a horizontal or vertical position on the side arms with S30 quick-attach system (both mechanical and hydraulic arm), but not on the attachment coupling plate of the loader. The S30 drive unit has the same 57 mm square shaft for attachments as the A37190 Multi-function drive unit but is equipped with lower torque and higher speed hydraulic motor and, therefore, works better with brushes. On the other hand, it doesn’t have enough power to rotate auger drills or screw cone log splitter.

  • Drive unit which mounts on S30 side arms
  • Possible to mount in a horizontal or vertical position
  • Equipped with high-speed hydraulic motor, intended for rotating different types of brushes
  • Same 57 mm square shaft for attachments as on the A37190 Multi-function drive unit

S30 Multi-function Drive Unit new

The multi-function drive unit equipped with the S30 quick attach bracket is intended mainly for rotating different types of brushes

Category:

Description

The multi-function drive unit equipped with the S30 quick attach bracket is intended mainly for rotating different types of brushes – XL weed brush, XL wire rope brush, and carousel broom. It can be mounted in a horizontal or vertical position on the side arms with S30 quick-attach system (both mechanical and hydraulic arm), but not on the attachment coupling plate of the loader. The S30 drive unit has the same 57 mm square shaft for attachments as the A37190 Multi-function drive unit but is equipped with lower torque and higher speed hydraulic motor and, therefore, works better with brushes. On the other hand, it doesn’t have enough power to rotate auger drills or screw cone log splitter.

  • Drive unit which mounts on S30 side arms
  • Possible to mount in a horizontal or vertical position
  • Equipped with high-speed hydraulic motor, intended for rotating different types of brushes
  • Same 57 mm square shaft for attachments as on the A37190 Multi-function drive unit

Reviews

There are no reviews yet.

Be the first to review “S30 Multi-function Drive Unit new”

Your email address will not be published. Required fields are marked *

Torque 950 Nm @ 200 bar
Rotating speed 95 rpm @ 30 l/min
Weight 30 kg
Product noA429926
CAROUSEL BROOMCAROUSEL BROOM, STEELXL WEED BRUSH
BRUSHSame Ø 1000 mm replaceable brush as on A2971 Carousel broomConsists of 3 pcs Ø 600 mm steel brushes mounted togetherBrush with 32 pcs heavy duty wire rope bundles
WEIGHT67 kg67 kg 64 kg36 kg
PRODCUT NOA37317A433646 A429932A431157
