Winch

Winch

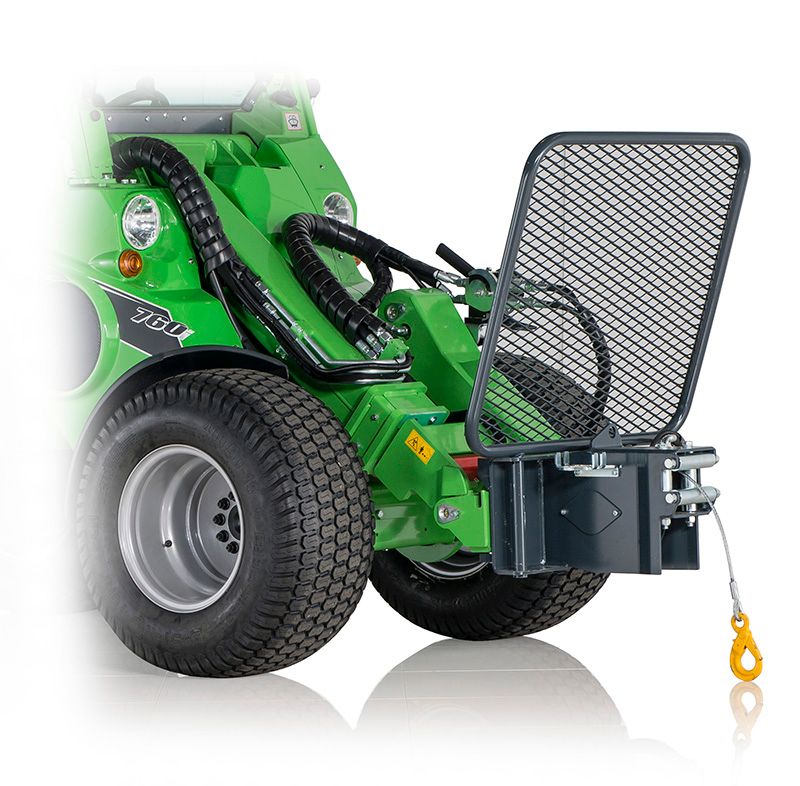

The Avant hydraulic winch enables towing of all kinds of objects (e.g. logs, poles, boats) from places where you cannot drive with the machine.

The winch is equipped with a safety net, 30 m of wire rope and a towing hitch. It is powered by a powerful hydraulic motor and mounts on Avant’s quick attach plate. Use of the winch is simple, one person can easily handle it. Auxiliary hydraulics control lever is switched to continuous flow (locking position) from the driver’s seat, which releases the wire drum so that the wire can be pulled out by hand. When the wire is attached to the desired object, the operator returns to the driver’s seat and turns the auxiliary hydraulics lever to the opposite direction and the winch begins to reel in the rope. The winch stops as soon as the auxiliary hydraulics control lever is released.

  • Powerful and compact hydraulic winch for various tasks
  • The winch is mounted directly on Avant’s quick attach plate, so you are also able to use the boom for lifting materials with the winch.
  • Equipped with wire rope guiding rollers

Winch

The Avant hydraulic winch enables towing of all kinds of objects from places where you cannot drive with the machine.

Category:

Description

The Avant hydraulic winch enables towing of all kinds of objects (e.g. logs, poles, boats) from places where you cannot drive with the machine.

The winch is equipped with a safety net, 30 m of wire rope and a towing hitch. It is powered by a powerful hydraulic motor and mounts on Avant’s quick attach plate. Use of the winch is simple, one person can easily handle it. Auxiliary hydraulics control lever is switched to continuous flow (locking position) from the driver’s seat, which releases the wire drum so that the wire can be pulled out by hand. When the wire is attached to the desired object, the operator returns to the driver’s seat and turns the auxiliary hydraulics lever to the opposite direction and the winch begins to reel in the rope. The winch stops as soon as the auxiliary hydraulics control lever is released.

  • Powerful and compact hydraulic winch for various tasks
  • The winch is mounted directly on Avant’s quick attach plate, so you are also able to use the boom for lifting materials with the winch.
  • Equipped with wire rope guiding rollers

Reviews

There are no reviews yet.

Be the first to review “Winch”

Your email address will not be published. Required fields are marked *

MAX. PULLING FORCE 1000 kp
MAX. REELING SPEED 0,5 m/s @ 20 l/min (recommended oil flow)
WIRE LENGTH 30 m
WEIGHT 105 kg
PRODUCT NO A36960
