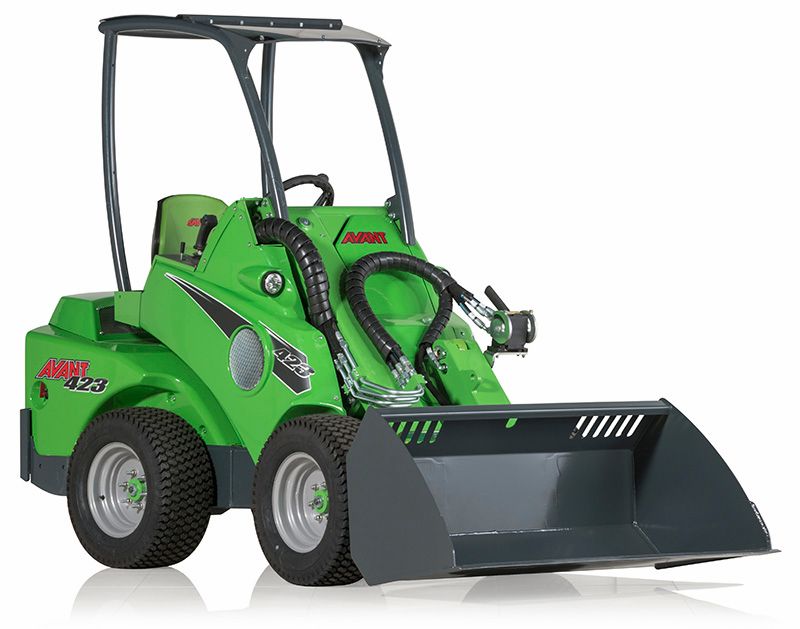

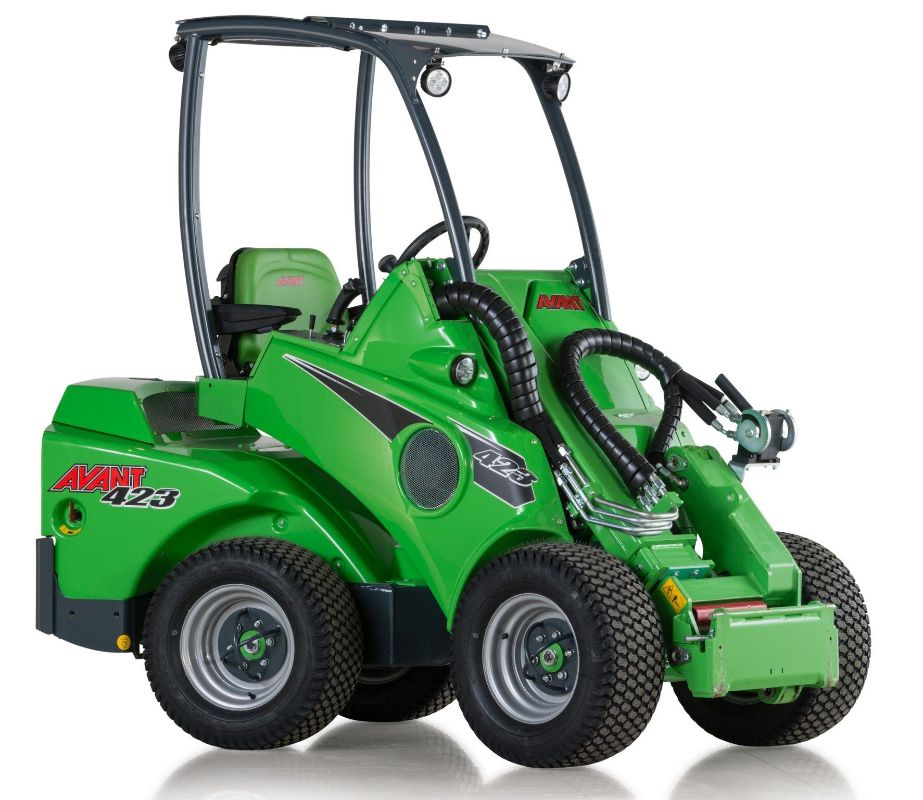

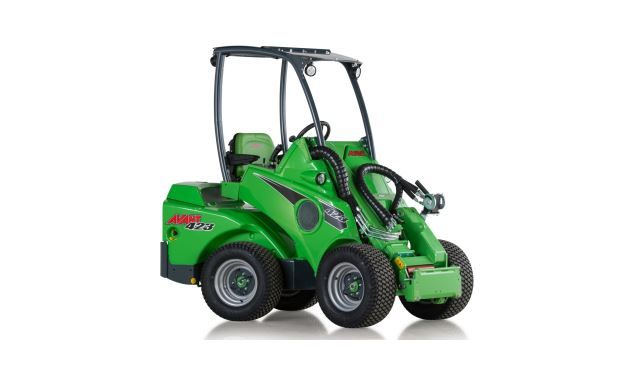

AVANT 423

AVANT 423

Avant 400 series loaders are real narrow access specialists and the smallest diesel model in the range. In spite of the small size and low weight of the 400 series, the lifting capacity of the loader is noteworthy with over 500 kg handled with ease. The loader’s turning radius is less than two meters which means the loader turns almost on the spot. Total machine width can be as narrow as 930 mm. The Avant telescopic boom is available for 400 series as well and with it, the lifting height is as high as 2,75 meters.

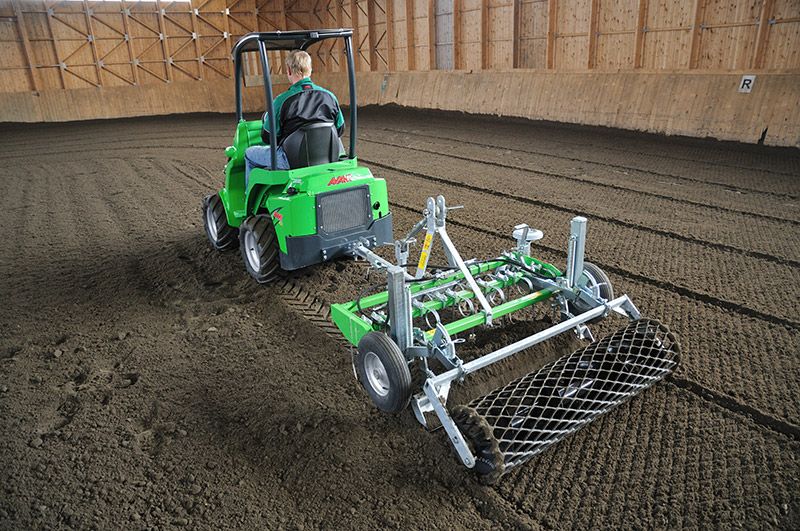

Avant 400 series’ compact dimensions and easy maneuverability make it extremely versatile for many different purposes, be it groundcare, agriculture, landscaping, earthmoving, lifting and handling, etc. The machine has enough kick which guarantees the most efficient year-round work. 400 series power is sufficient for most Avant attachments.

  • Simple, effective hydraulics means good power and low operating costs
  • Easy to transport with a car trailer

Avant attachments have been designed to work as an equal partner on Avant loaders. The best machine-attachment combination and work efficiency can only be achieved when a good machine is fitted with attachments that are specifically designed for the machine. The dimensions, auxiliary hydraulics output and other features of Avant are in perfect balance with the attachments.

Avant loaders and attachments have been designed for year-round use which ensures that the machine is never sitting idle. The wide range of options available for the loaders – like four different cabs, extra work lights, the Opticontroltm attachment control system, etc. – together with technical solutions in the loaders make Avant as comfortable to use in the winter cold as it is on a sunny summer afternoon.

Avant’s hydraulic multi-connector system for coupling the attachment’s hydraulic hoses guarantees easy and effortless connecting and detaching in any situation with a single hand movement. It can be done with the engine running and/or pressure in the attachment, also in freezing ambient temperatures. The mechanism is leak-free and cannot be connected in the wrong way.

While Avant loaders are made as compact as possible, the reach and lift height do not suffer from it.

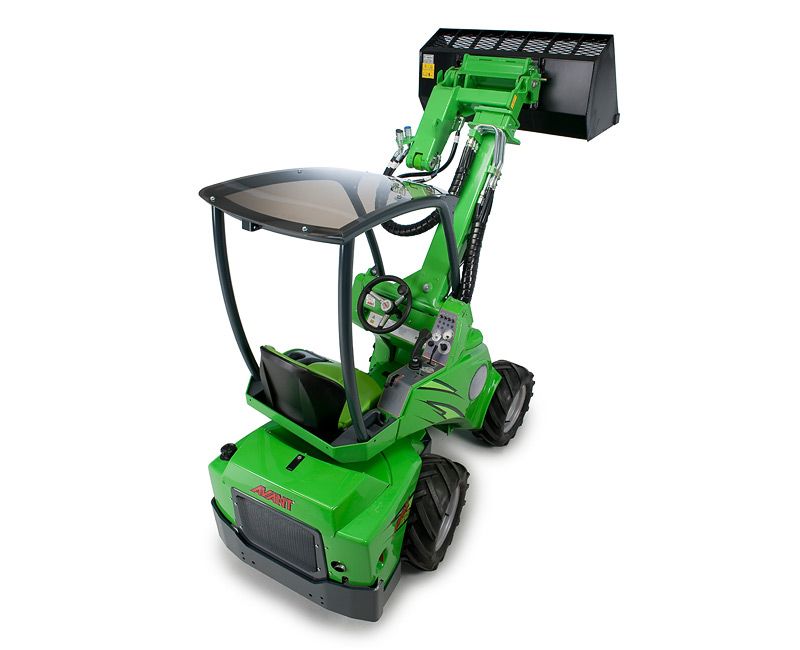

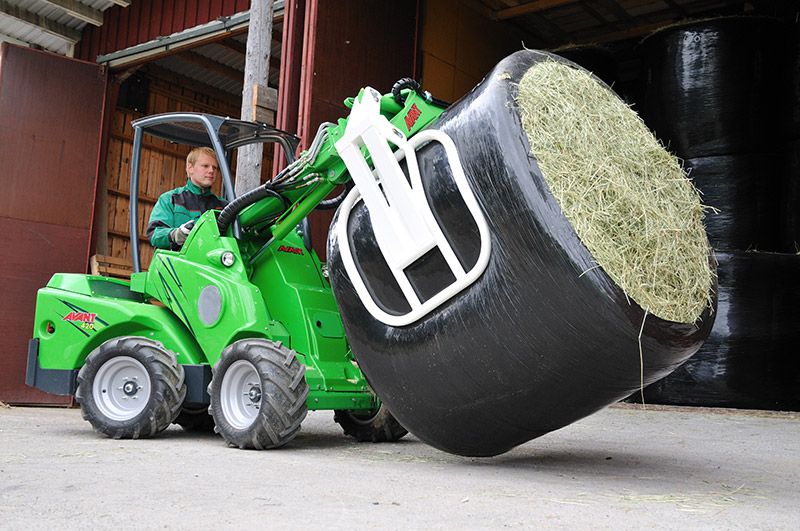

Avant’s telescopic boom makes it possible to have a very compact machine with a great outreach and lift capacity. When the telescopic boom is retracted it is possible to lift heavier loads. With the boom fully extended, the reach and lift height are unparalleled.

In many cases, it is possible to load a trailer from one side thanks to the outreach of the telescopic boom and still have excellent all-round visibility.

Avant’s ingenious articulated design where the driver sits in the front chassis and has a perfect view on the attachment and work area means low center of gravity of the machine, which is an important factor in the stability. Also the rigid articulation joint which doesn’t swing sideways increases stability in all situations and at the same time best possible traction can be achieved thanks to the advanced 4×4 system.

All Avant loaders are equipped with an open ROPS/FOPS certified cab as standard, and also the optional enclosed cabs (L, LX, DLX, GT) comply with the ROPS/FOPS standards.

With over 200 attachments, Avant is a loader with the flexibility to perform all kinds of work. Changing the attachment is very fast and simple thanks to the Avant quick attach system and hydraulic multi-connector. This makes the machine very versatile: you can perform all kinds of work just by changing the attachment.

The uncomplicated and strong construction along with high-quality components means easy maintenance. The use of renowned components also helps to reduce maintenance costs.

AVANT 423

A low operating weight, uncomplicated and economical

Category:

Description

Avant 400 series loaders are real narrow access specialists and the smallest diesel model in the range. In spite of the small size and low weight of the 400 series, the lifting capacity of the loader is noteworthy with over 500 kg handled with ease. The loader’s turning radius is less than two meters which means the loader turns almost on the spot. Total machine width can be as narrow as 930 mm. The Avant telescopic boom is available for 400 series as well and with it, the lifting height is as high as 2,75 meters.

Avant 400 series’ compact dimensions and easy maneuverability make it extremely versatile for many different purposes, be it groundcare, agriculture, landscaping, earthmoving, lifting and handling, etc. The machine has enough kick which guarantees the most efficient year-round work. 400 series power is sufficient for most Avant attachments.

  • Simple, effective hydraulics means good power and low operating costs
  • Easy to transport with a car trailer

Reviews

There are no reviews yet.

Be the first to review “AVANT 423”

Your email address will not be published. Required fields are marked *

* lift capacity with a 90 cm pallet

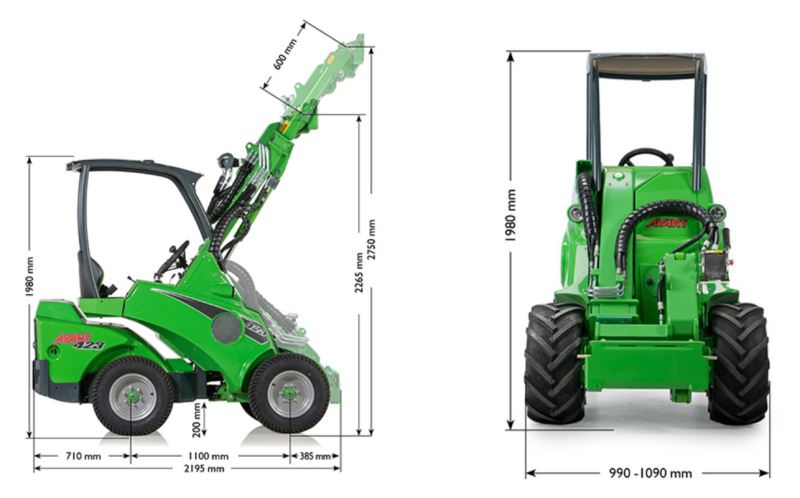

Length 2195 mm
Width (standard wheels) 1050 mm
Height 1980 mm
Weight1030-1080 kg
Standard wheels 23x8.50-12” TR
Transmission, drive Hydrostatic
Pulling force 700 kp
Drive speed max. 12 km/h
Aux. hydraulics oil flow / pressure 34 l/min 185 bar
Turning radius inside/outside 880 / 1970 mm
Max. lifting height (with telescopic boom) 2750 mm
Tipping load * 550 kg
Engine make and type Kubota D902
Engine output (ISO Gross) 16 kW (22 hp)
Fuel Diesel
Wheel size ProfileMachine width
5 x 10 tractor990 mm
23 x 8.50 - 12 tractor or grass 1050 mm
23 x 10.50 - 12 tractor or grass 1095 mm
AVANT 423 - LIGHT AND ECONOMICAL WORKHORSE
Engine Power - 22hp diesel 22hp diesel
Max Speed - 12.0 km/h 12.0 km/h
Lift Capacity - 550 kg 550 kg
Lift Height - 2.8 m 2.8 m
