AVANT 530

AVANT 530

The 500 series is in the middle of Avant loader range in terms of size and performance. The 500 series loaders are well suited for a wide range of customer segments thanks to their power and straight forward hydraulics which is needed in many jobs. The compact dimensions and good maneuverability allow working in a large variety of environments. 500 series can also lift amazingly heavy loads compared to the size of the machine.

Avant 500 series is a reliable partner for all-round use. Like all Avants, it can be equipped following customer needs, including all cab options (L, LX, DLX). The comprehensive Avant attachment range guarantees efficient working all year round.

  • Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
  • Simple, effective hydraulics means good power and low operating costs
  • Easy to transport with a car trailer

Avant’s ingenious articulated design where the driver sits in the front chassis and has a perfect view on the attachment and work area means low center of gravity of the machine, which is an important factor in the stability. Also the rigid articulation joint which doesn’t swing sideways increases stability in all situations and at the same time best possible traction can be achieved thanks to the advanced 4×4 system.

All Avant loaders are equipped with an open ROPS/FOPS certified cab as standard, and also the optional enclosed cabs (L, LX, DLX, GT) comply with the ROPS/FOPS standards.

While Avant loaders are made as compact as possible, the reach and lift height do not suffer from it.

Avant’s telescopic boom makes it possible to have a very compact machine with a great outreach and lift capacity. When the telescopic boom is retracted it is possible to lift heavier loads. With the boom fully extended, the reach and lift height are unparalleled.

In many cases, it is possible to load a trailer from one side thanks to the outreach of the telescopic boom and still have excellent all-round visibility.

Avant attachments have been designed to work as an equal partner on Avant loaders. The best machine-attachment combination and work efficiency can only be achieved when a good machine is fitted with attachments that are specifically designed for the machine. The dimensions, auxiliary hydraulics output and other features of Avant are in perfect balance with the attachments.

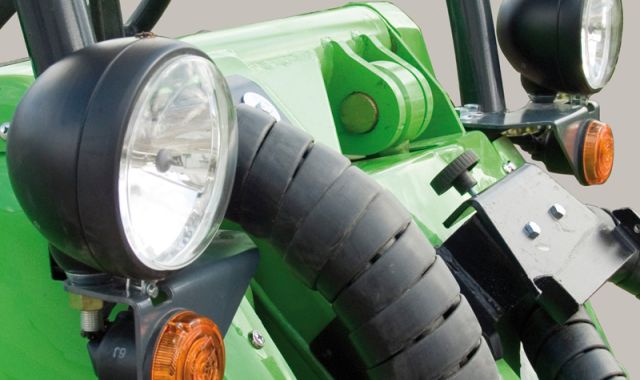

Avant loaders and attachments have been designed for year-round use which ensures that the machine is never sitting idle. The wide range of options available for the loaders – like four different cabs, extra work lights, the Opticontroltm attachment control system, etc. – together with technical solutions in the loaders make Avant as comfortable to use in the winter cold as it is on a sunny summer afternoon.

Avant’s hydraulic multi-connector system for coupling the attachment’s hydraulic hoses guarantees easy and effortless connecting and detaching in any situation with a single hand movement. It can be done with the engine running and/or pressure in the attachment, also in freezing ambient temperatures. The mechanism is leak-free and cannot be connected in the wrong way.

All articulated Avant loaders are equipped with a hydrostatic drive system. There is a hydraulic drive motor on each wheel. The drive circuit is equipped with valves with which traction can be controlled in different situations. In order to avoid tyre marks on soft and sensitive surfaces when turning, the system allows the wheels on the left and right sides of the loader to roll at different speeds. This also reduces tyre wear on hard surfaces.

The valves in the drive system work like a hydraulic 4×4 diff lock and equalize the oil flow between the left and right side hydraulic motors, improving traction on slippery and uneven surfaces.

AVANT 530

Excellent choice with robust and simple hydraulics

Category:

Description

The 500 series is in the middle of Avant loader range in terms of size and performance. The 500 series loaders are well suited for a wide range of customer segments thanks to their power and straight forward hydraulics which is needed in many jobs. The compact dimensions and good maneuverability allow working in a large variety of environments. 500 series can also lift amazingly heavy loads compared to the size of the machine.

Avant 500 series is a reliable partner for all-round use. Like all Avants, it can be equipped following customer needs, including all cab options (L, LX, DLX). The comprehensive Avant attachment range guarantees efficient working all year round.

  • Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
  • Simple, effective hydraulics means good power and low operating costs
  • Easy to transport with a car trailer

Reviews

There are no reviews yet.

Be the first to review “AVANT 530”

Your email address will not be published. Required fields are marked *

* Load is measured at 400 mm from the attachment coupling plate, including attachment weight (70 kg).
Length 2570 mm
Width 1130 mm
Height (with standard wheels) 1985 mm
Weight 1290 + 170 kg
Standard wheels 23x10.50-12” TR
Transmission, drive hydrostatic
Pulling force 1050 kp
Drive speed 9/19 km/h (2-speed)
Aux. hydraulics oil flow / pressure 36 l/min 200 bar
Turning radius inside/outside 995 / 2050 mm
Lifting height 2790 mm
Tipping load * 950 kg
Max. breakout force / 50 cm 1250 kg
Engine make and type Kubota D1105
Engine output (ISO Gross) 19 kW (26 hp)
Fuel Diesel
* Bigger wheels will increase total machine height by 20-35 mm.
Wheel size ProfileMachine width
27 x 8.50 - 15 * tractor 1030 mm
23 x 8.50 - 12 tractor or grass 1080 mm
23 x 10.50 - 12 tractor or grass 1130 mm
26 x 12.00 - 12 * tractor or grass 1290 mm
320/60-12 HD * tractor 1290 mm
Wheels L Cab LX Cab DLX Cab
23" 2020 mm 2010 mm 2030 mm
26" 2035 mm 2025 mm 2045 mm
320/60-12 2035 mm 2025 mm 2045 mm
27" 2048 mm 2038 mm 2058 mm
AVANT 530 - UNBEATABLE POWER - PRICE RATIO
Engine Power - 22hp diesel 22hp diesel
Max Speed - 12.0 km/h 12.0 km/h
Lift Capacity - 800 kg 800 kg
Lift Height - 2.8 m 2.8 m
