AVANT E5

AVANT E5

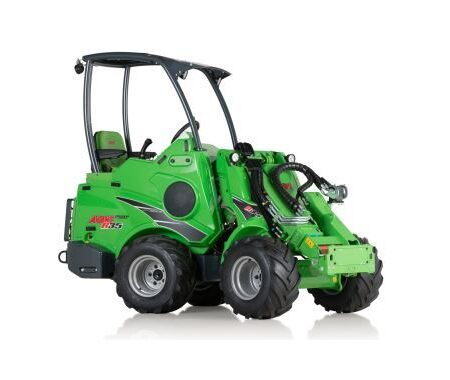

Avant was the first manufacturer to introduce a full-electric, battery-powered compact loader series to the market. Full electric loader with zero-emission and extremely low noise is the answer to future demands. Although the e series is electric it offers the same power and properties as the Avant 500 series which is equipped with a diesel engine.

Two full-electric models are available, the Avant e5 & e6. Both loaders have an integrated battery charger as standard, which makes it possible to charge batteries anywhere a 230 volt / 10A power outlet is available.

Avant e5 is equipped with a maintenance-free Absorbent Glass Mat (AGM) battery. You can charge the e5 fully in 5 hours and work with it between one and two hours. This makes the e5 a very good option if your work allows you to charge for a longer period.

Avant e6 is the first compact loader with a lithium-ion battery.  The e6 can be fully charged in just over an hour and you can operate between two to four hours with a full battery. The short charge time will practically allow you to work a full work day with e6 because you can charge the battery during your lunch break to full again.

  • Battery-driven, 100% full electric
  • No exhaust emissions, very low noise, built-in battery charger

The most important factors which have an effect on the working time are battery capacity and electric current consumption when working.

We recommend starting charging the lithium-ion battery of e6 at the latest when the battery charge level has dropped to 10 %. The lead-acid battery of e5 should be charged already when the battery charge level drops below 50 %. If necessary, it is possible to work with the e5 to 20-30 % charge and even lower, but this will clearly shorten the lifespan of the battery.

The e6 can work much more efficiently the whole day thanks to the more utilizable battery capacity and the possibility to charge the battery with a 400V rapid charger.

It is possible to work a full day with the e6 if it’s being charged during breaks whereas the e5 is more suitable for jobs where the work cycle is shorter and there is more time to charge the battery between the cycles – for instance, works like distributing feed to the cattle in the morning and in the evening.

The rapid charger considerably speeds up charging of the lithium-ion battery of the e6 considerably compared with the standard built-in 230V/10A battery charger.

There are two models available: 400V/16A charger and the more efficient 400V/32A charger. Charging time of the 16A charger from 0 to 100 % with a full current is approx. 2 hours and with the 32A charger just over 1 hour.

A good way to charge the battery is not to let the battery run out completely and start charging when there is some 20 % charge left – then charging to 80 % takes just over 30 minutes with the 32A charger.

The rapid charger comes with a stand, so it is easy to relocate on the work site or to whole another work site if necessary. The stand is equipped with Avant quick-attach bracket in the rear, forklift brackets in the bottom and lifting lugs on top.

The running costs for e5 and e6 are significantly lower than any diesel-powered loader due to the lack of a combustion engine.

Electricity cost compared to diesel is roughly 75% cheaper. This will make the biggest difference in running costs when comparing e series to a diesel loader.

One of the advantages of battery-powered machines is simpler maintenance. The batteries and electric motors are practically maintenance-free, which means clearly lower maintenance costs for electric loaders.

There are also fewer checkpoints and there is no need to change engine oil, coolant, or engine filters in periodical service.

In practice, only hydraulic oil and filter (in e6 also battery air filters) must be replaced in electric machines. The difference is clearly visible in service costs because the price of a periodical service of electric Avants is about 50 % lower.

Electric Avants are equipped with two different battery types. Avant e5 features an AGM (Absorbent Glass Mat) lead-acid battery, where the electrolyte is absorbed in very thin glass mats. The nominal voltage of the battery is 48V and capacity 285 Ah / 13,6 kWh.

Advantages of an AGM battery are for instance being maintenance-free, vibration resistant and ability to give out more current than a traditional lead-acid battery. However, compared to a lithium-ion battery the lead-acid technology is inferior in battery lifespan and work cycle, ability to give out current and charging speed. The battery is also heavier than a lithium-ion battery, however, in Avant it is a good counterweight when lifting heavier loads.

Avant e6 is equipped with a modern lithium-ion battery (LiFePO₄). The nominal voltage of this battery is also 48V and capacity 288 Ah /13,8 kWh, about the same as in e5.

The advantages of a lithium-ion battery over an AGM battery are higher discharge and charging currents, considerably longer work cycle and lower weight. The weight of e6’s battery is more than 50 % lower than the weight of the AGM battery on e5. The lithium-ion battery can also be discharged to a lower charge level than a lead-acid battery without compromising the work cycle, which means a lithium-ion battery gives current for a longer time.

AVANT E5

£123.00

Perfect for indoor use where ventilation is limited or non-existent and there are strict noise restrictions

Description

Avant was the first manufacturer to introduce a full-electric, battery-powered compact loader series to the market. Full electric loader with zero-emission and extremely low noise is the answer to future demands. Although the e series is electric it offers the same power and properties as the Avant 500 series which is equipped with a diesel engine.

Two full-electric models are available, the Avant e5 & e6. Both loaders have an integrated battery charger as standard, which makes it possible to charge batteries anywhere a 230 volt / 10A power outlet is available.

Avant e5 is equipped with a maintenance-free Absorbent Glass Mat (AGM) battery. You can charge the e5 fully in 5 hours and work with it between one and two hours. This makes the e5 a very good option if your work allows you to charge for a longer period.

Avant e6 is the first compact loader with a lithium-ion battery.  The e6 can be fully charged in just over an hour and you can operate between two to four hours with a full battery. The short charge time will practically allow you to work a full work day with e6 because you can charge the battery during your lunch break to full again.

  • Battery-driven, 100% full electric
  • No exhaust emissions, very low noise, built-in battery charger

Reviews

There are no reviews yet.

Be the first to review “AVANT E5”

Your email address will not be published. Required fields are marked *

Length2570 mm
Width (with standard tires) 1130 mm
Height1985 mm
Weight1640 kg
Standard tires 23x10.50-12
Transmission, drive Hydrostatic Avant OptidriveTM
Drive speed10 km/h
Aux. hydraulics30 l/min
Hydraulic oil cooler Standard
Turning radius inside/outside 995 / 2050 mm
Max. lifting height 2790 mm
Max. lifting capacity (hydr.) 1350 kg
Tipping load * 900 kg
Max. breakout force / 50 cm1100 kg
Battery typeAGM (Absorbent Glass Mat)
Energy13,6 kWh
FuelElectric
AVANT E5 - THE FULL-ELECTRIC BATTERY-POWERED AVANT
Engine Power - Electric Electric
Max Speed - 12.0 km/h 12.0 km/h
Lift Capacity - 900 kg 900 kg
Lift Height - 2.8 m 2.8 m
